Youtube Reviews
Key Pointers:
Technical Specifications:
- Model: CEO 1100
- Output: 900 VA and 756 W peak output
- Voltage: 24 V
- Single battery operation
- 3-year warranty (5-year warranty with registration)
Advanced Features:
- Smart Inverter: Safe for sensitive appliances.
- Bypass Switch: Provides seamless transition to mains power in case of inverter failure.
- Battery Select: Supports all battery types.
- Eco and UPS Modes: Optimizes performance for different appliance types.
- Over-Heat Protection: Automatically shuts off to prevent overheating.
Display Indicators:
- Maximum display time: 9 hours 59 minutes
- Battery status
- Mode
- Backup time
Alarm Features:
- Low battery alarm
- Overload alarm
- Wrong wiring alarm
- Over-temperature alarm
- Short circuit alarm
Other Key Points:
- Price: Rs. 7,000 approximately (lower on Amazon during Early Bird sales)
- Dimensions: Compact and modern design
- Safety: Equipped with multiple safety features
Key Pointers:
- Product: Luminous Zelio+ 1100 inverter with a maximum load capacity of 750 VA.
- Design: Simple front panel with an LED display (visible after connecting the battery) and a power on/off switch.
- Features:
- Automatic fan for temperature regulation.
- Mode selection switch (UPS or inverter).
- Battery selection switch (tubular, flat, or solar).
- MCB for safety.
- Bypass switch for alternative power source.
- Battery Connection: Connect positive and negative terminals of the battery first.
- Display: Shows battery charging time and backup time.
- Power Consumption: Measured using a Wipro smart plug, approximately 20 A and 381 W.
- Backup Time: Displayed on the inverter screen, approximately 10 hours for a 150 Ah battery (may vary based on load).
- Chart: Available on the display to estimate backup time for different load levels.
Key Points:
-
Model and Specifications:
- Model: Luminous Inverex iSM1102+
- Power: 900VA
- Active power: 756 watts
- Power factor: 0.84
- Suitable battery: 12V, 80-158Ah
-
Battery Indicator:
- Green light indicates sufficient battery water level
- Red light indicates low battery water level
-
Cooling System:
- Internal transformer and circuit board are cooled to prevent overheating
-
Eco Mode vs UPS Mode:
- Eco mode: Supplies power up to 230V for low-power appliances (e.g., fans, lights)
- UPS mode: Provides stabilized power for sensitive electronics (e.g., desktops, laptops)
-
Bypass Mode:
- When main power supply is available, it bypasses the inverter and directly powers the output
-
Output and Input Protection:
- 10A MCB on the input side protects against short circuits
- Luminous-branded CDB on the output side provides additional protection
-
Calculating Power Consumption:
- Add up the power ratings of appliances you intend to use (e.g., 10 LED bulbs at 10W each = 100W)
- Compare the total power consumption to the inverter's active power rating (756W)
-
Suitable Appliances:
- Non-mechanical appliances with low power consumption (e.g., LED TVs, fans, light bulbs, laptops)
- Heavy appliances (e.g., refrigerators, mixers, water pumps) are not suitable for this inverter
-
Battery Replacement Procedure:
- Unplug the inverter and turn off the mains
- Disconnect the battery terminals (first the negative, then the positive)
- Remove the old battery and insert the new one
- Reverse the steps to reassemble the inverter
- Apply petroleum jelly or grease to the battery terminals to prevent corrosion
Note: It is recommended to hire a certified electrician for any electrical work, including inverter replacement.
Key Pointers:
-
Battery:
- RC 25000 high power battery
- 208 Ah capacity
- 36 months warranty (24 months replacement guarantee, rest pro-rata basis)
- MSRP: ₹23,000 (discounted price available)
-
Inverter:
- Microtek Inverlast 11 UPS sine wave inverter
- 90% conversion efficiency
- 756 watts output
- Eco mode for extended battery life
- Tubular flat plate battery (12V, 208 Ah)
- Low battery cut-off feature
- Overload protection
- Bypass mode for direct mains power supply
-
Trolley:
- Included with the battery and inverter
- Sturdy build quality
-
Other Features:
- Water level indicator (optional)
- Auto power off during emergencies
- Estimated backup time of 5 hours 49 minutes with two fans and two bulbs running
- Fully recharges in approximately 4 minutes
Note: The price of the complete setup, including battery, inverter, and trolley, was approximately ₹24,000 at the time of purchase, but may fluctuate slightly.
- Product packaging: The inverter comes in a sturdy box that includes the inverter unit, user manual, and warranty card.
- Front panel design: The inverter has a sleek and premium design with a display panel.
- Display panel: The display panel provides real-time information on battery level, charging status, and output voltage.
- Warranty: The inverter comes with a 2-year warranty.
- Input and output specifications: The inverter operates on a single 12V battery and provides a 1100VA output.
- Soft start: The inverter has a soft start feature that prevents sudden voltage fluctuations.
- Overload protection: The inverter features an overload protection mechanism to prevent damage in case of excessive load.
- UPS mode: The inverter can be switched to UPS mode, providing uninterrupted power supply during power outages.
- Battery type selection: The inverter allows users to select between tubular and flat-plate batteries.
- Cooling fan: The inverter has a cooling fan that activates when the temperature rises.
- Battery connection: The inverter has clear markings for battery terminals, making it easy to connect.
- Power output: The inverter provides a stable output voltage of 214V, as verified using a multimeter.
- Load testing: The inverter was tested with various appliances, including a juicer and a printer, and it successfully powered them without any issues.
- User manual: The user manual provides detailed instructions for installation, operation, and troubleshooting.
Specifications
| Specification | Value |
|---|---|

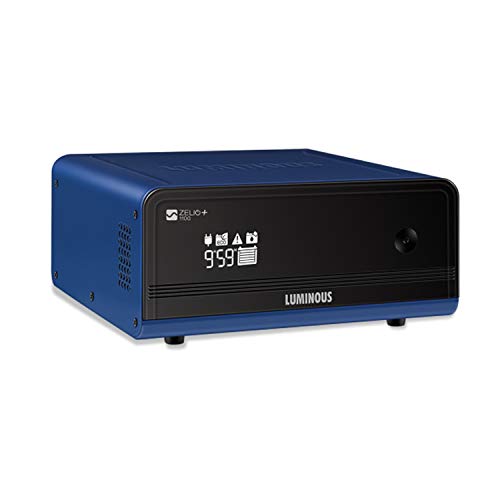

| Model | Luminous Zelio+ 1100 |
| Type | Pure Sinewave Inverter |
| Capacity | 900VA |
| Voltage | 12V |
| Battery Compatibility | 1 x 12V Inverter Battery |
| Output Power | 1100W |
| Surge Power | 2200W |
| Efficiency | > 90% |
| Protection | Overload, Short Circuit, Battery Overcharge, Battery Over-discharge |
| Indicators | LED Display for Battery Level, Overload, Fault |
| Warranty | 2 Years |
| Dimensions (L x W x H) | 300 x 240 x 110 mm |
| Weight | 7.5 kg |
Key Features
Features of the Luminous Zelio+ 1100 Pure Sinewave 900VA/12V Inverter:
Pure Sinewave Output: * Generates a clean and stable sine wave output, similar to the grid power. * Compatible with sensitive electronic devices such as computers, TVs, and medical equipment.
900VA Power Output: * Provides 900VA of continuous power and up to 1200VA of surge power. * Suitable for powering medium-sized loads in homes, offices, and shops.
Supports 12V Battery: * Requires a single 12V lead-acid battery (not included) for operation. * Compatible with batteries with capacities ranging from 100Ah to 150Ah.
Intelligent Battery Management System (IBMS): * Optimizes battery charging and extends battery life. * Protects against overcharging, undercharging, and deep discharge.
Battery Charging Technology: * Advanced charging algorithm ensures fast and efficient charging. * Multi-stage charging prevents sulfation and prolongs battery lifespan.
Clock and Sleep Mode: * Built-in clock for easy timekeeping. * Sleep mode reduces power consumption when the inverter is not in use, saving energy.
Alarms and Indicators: * Audible and visual alarms for low battery, high temperature, and overload protection. * LED display provides real-time status information.
Compact and Durable: * Sleek and compact design for easy installation. * Rugged construction ensures reliability and longevity.
Other Features: * Transfer time of less than 10ms for seamless power backup. * Wide input voltage range (140-290V) for exceptional grid stability. * Generator compatible for off-grid applications.
What do people say about this product
Pros:
- Pure sine wave output: Provides clean and stable power that is compatible with sensitive electronics and appliances.
- High power output: Delivers 900VA of continuous power, capable of powering multiple devices.
- Compact and lightweight: Easy to install and transport.
- LCD display: Provides real-time information on battery level, power consumption, and fault conditions.
- Built-in overload and surge protection: Protects connected devices from power spikes and overloads.
- Supports external battery connection: Can be used with an external 12V battery for extended backup time.
Cons:
- Limited battery capacity: Requires an external battery for backup power, which must be purchased separately.
- No built-in charger: A separate battery charger is needed to charge the external battery.
- Not expandable: Cannot be connected to additional inverters for higher power output.
- Price: May be more expensive than some other inverter options.
- Noise: Can generate some audible noise when in use, especially under heavy load.
