Specifications
Specifications of V-Guard VSDI 100 Digital for Inverter Refrigerator
| Attribute | Specification |
|---|---|
| Model | VSDI 100 |
| Application | Inverter Refrigerator up to 900 L / Freezer up to 4 Ampere |
| Color | Grey |
| Type | Digital Controlled |
| Input Voltage Range | 120 VAC - 280 VAC |
| Output Voltage | Stabilized voltage as per appliance requirement |
| Output Power | As per Appliance requirement |
| Frequency Range | 40 Hz - 65 Hz (Suitable for Indian power conditions) |
| Time Delay | 10 Seconds |
| Stabilization Time | Less than 1 sec |
| Low Voltage Cut-Off | 110 volts |
| Over Voltage Cut-Off | 280 volts |
| High Current Cut-Off | 4 ampere |
| Soft Start | Yes |
| No Load Current | < 0.5 Watt |
| Dimensions | 104 mm X 170 mm X 127 mm |
| Weight | 1.23 Kg |
| Warranty | 1 year |
| Features | Selectable input Operation Range (140-270 V / 170-290 V), Fully Automatic Operation, DIGITAL display, Overload Indicator, Fault Indicator, Alarm, Surge and Spike Protection, Wall Mountable |
Key Features

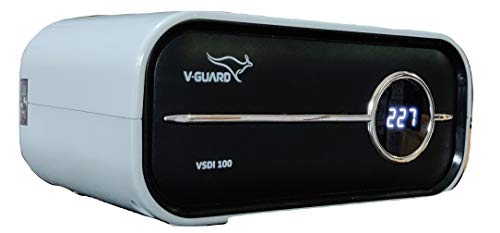

V-Guard VSDI 100 Digital Voltage Stabilizer
Features for Inverter Refrigerator up to 900 L/Freezer on Top up to 4 Ampere
Working Range (Input): 120 VAC - 280 VAC
1. Digital Display and Metering: * Large and clear digital display shows input and output voltage, current, and load percentage. * Allows for easy monitoring of power supply status.
2. Wide Input Voltage Range: * Stabilizes voltage with a wide input range of 120-280 VAC. * Protects connected appliances from voltage fluctuations and surges.
3. Advanced Microprocessor Control: * Precise voltage regulation using an advanced microprocessor. * Ensures accurate and consistent output voltage.
4. Time Delay Protection: * Built-in time delay protects appliances from sudden voltage fluctuations during power restoration.
5. Overload Protection: * Automatic shut-off in case of overload to safeguard connected appliances.
6. Short Circuit Protection: * Circuit breaker cuts off power in case of a short circuit, providing safety for appliances and users.
7. LED Fault Indicators: * LED indicators provide visual cues for various fault conditions, such as under/over voltage, overload, and short circuit.
8. Enhanced Stability: * High-quality, heavy-duty transformer ensures optimal voltage stability.
9. Compact and Lightweight: * Compact design with a lightweight casing for easy installation.
10. Wide Compatibility: * Suitable for inverter refrigerators up to 900 L and freezers on top up to 4 Ampere. * Protects electronic and sensitive appliances.
What do people say about this product
Pros:
- Wide input voltage range: Can operate on a wide range of input voltages (120-280 VAC), providing stability even during voltage fluctuations.
- Suitable for high-power appliances: Capable of supporting inverter refrigerators up to 900 liters and freezers up to 4 amperes.
- Digital display: Provides clear and precise voltage and performance information.
- Built-in overload protection: Automatically shuts down the system to prevent damage to connected appliances in case of overload.
- Delay timer: Prevents immediate restart of appliances after power outages, protecting their compressors.
- Compact design: Takes up minimal space and can be easily installed.
Cons:
- Limited surge protection: May not offer sufficient surge protection for highly sensitive electronic devices.
- Not suitable for extended power outages: Requires a backup power source (e.g., UPS or generator) to operate during extended power cuts.
- Costlier than non-digital models: Can be more expensive than basic voltage stabilizers without digital features.
- May require professional installation: Recommended for installation by a qualified electrician, especially for higher-power appliances.
- Limited compatibility: May not be compatible with all inverter refrigerators and freezers due to different technical specifications.
