Youtube Reviews
Key Pointers:
- Model and Price: TP-Link Archer C6U, 1200 Mbps dual-band router, available with and without USB port.
- Features: Beamforming for improved range and priority speeds, full Gigabit speeds on all ports, supports 100+ Mbps connections, USB port for external devices (USB model only).
- Speeds: 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Unboxing: Includes router, power adapter, Ethernet cable, and quick installation guide.
- Setup: Easy setup process using web interface or Tether app.
- Basic Settings: Internet connection, Wi-Fi settings, USB sharing, parental controls, and advanced options.
- Advanced Settings: IP address configuration, firewall, port forwarding, VPN server, and Alexa integration.
- System Tools: Time settings, LED control, firmware updates, and backup/restore options.
- Performance: Tested in Ward Mode, achieving download speeds up to 365 Mbps and upload speeds up to 171 Mbps.
- Speed Test in Different Room: Download speeds drop to around 206 Mbps in another room, but upload speeds remain around 250 Mbps.
- Recommendation: Suitable for 3BHK flats and offers versatile connectivity options, including USB port.
Key Points:
- The TP-Link router has a white feather technology that delivers equal speed to all connected devices, eliminating interruptions.
- It supports 80 MBPS speed on the 2.48 GHz band and 300 Mbps on the 5 GHz band.
- Advanced security features, including smart roaming support, are included.
- The packaging is environmentally friendly, using recycled paper.
- The router comes with four external antennas for improved signal coverage.
- The setup process is straightforward and can be done through a web interface.
- The router can be used as a Wi-Fi extender or as a primary router.
- The user can customize the Wi-Fi network name and password.
- The speed test results show that the router provides good performance, delivering the contracted Internet speed to connected devices.
Key Pointers
- TP-Link Archer C6 ax3000 Wi-Fi router with dual-band connectivity
- Supports up to 1000 MBPS internet speed
- OFDMA and MU-MIMO technologies for simultaneous data transfer to multiple devices
- Easy setup process through mobile app or web interface
- Range tested for coverage and speed in different areas of a home
- 5 GHz band provides speeds up to 867 Mbps, while 2.4 GHz band offers speeds up to 300 Mbps
- Compatible with range extenders for extended coverage
- Ideal for homes or small offices with multiple Wi-Fi devices
Key Pointers:
- Connect the Ethernet cable from your ISP to the "WAN" port on the router.
- Power on the router.
- Reset the router by pressing and holding the WPS/Reset button for over 10 seconds until the LED blinks rapidly.
- Connect your device to the router via Ethernet or Wi-Fi using the default credentials found on the sticker on the router.
- Visit the web management page by typing "tplinkwifi.net" into a browser.
- Create an administrator password.
- Select your local time zone and connection type (provided by your ISP).
- Enter your PPPoE username and password (if required).
- Enable "Smart Connect" to share the same SSID and password for both 2.4GHz and 5GHz bands.
- Alternatively, customize the SSID and password for each band separately.
- Scroll down and click "Save."
- Reconnect your devices to the new Wi-Fi network.
- Click "Next" to finish the setup and configuration.
Specifications
| Feature | Specification |
|---|---|
| Model | Archer C6 |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/b/g 2.4GHz |
| Wireless Speed | 867Mbps 5GHz + 400Mbps 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Antenna | 4 External Antennas |
| MIMO Technology | MU-MIMO |
| Ports | 5 Gigabit Ethernet Ports (1 WAN + 4 LAN) |
| Security | WPA/WPA2-PSK/WPA3-PSK |
| IPv6 | Yes |
| LED Indicators | Power, Wi-Fi, WPS, Ethernet |
| Power Supply | 12V/1.5A DC Power Adapter |
| Dimensions (W x D x H) | 250 x 139 x 43mm |
| Weight | 0.65kg |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | Archer C6 Router, Power Adapter, Ethernet Cable, Resource CD, Quick Installation Guide |
Key Features

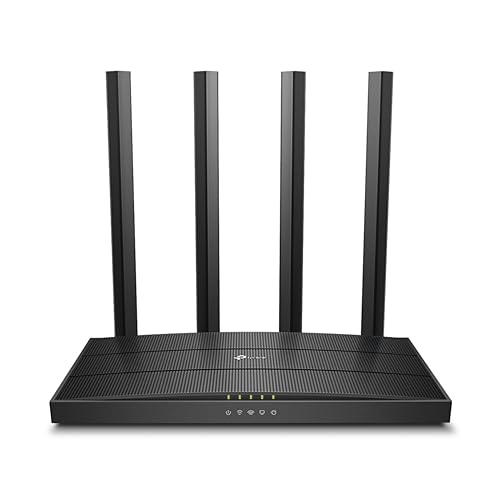

Key Features of TP-Link Archer AC1200 (Archer C6):
Wi-Fi Speeds: * Dual-band Wi-Fi with speeds of up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band
Broadband Connectivity: * 5 Gigabit Ethernet ports for fast wired connections
Enhanced Coverage: * 4 external antennas for improved signal strength and range
MU-MIMO Technology: * Allows multiple devices to connect simultaneously without bandwidth degradation
Dual Band: * Separates the 2.4 GHz and 5 GHz bands for better device compatibility and reduced interference
Access Point Mode: * Can be used to create a new Wi-Fi hotspot or extend an existing network
Other Features:
- Parental Controls: Allows you to restrict internet access for certain devices and create guest networks
- Easy Setup: Web-based and Tether app for quick and simple configuration
- QoS (Quality of Service): Prioritizes network traffic for gaming, streaming, and other high-bandwidth applications
- WPS (Wi-Fi Protected Setup): Enables easy and secure Wi-Fi encryption
- IPv6 Support: Compatible with the latest internet protocol
- Power Consumption: Energy-efficient design with adjustable power settings
What do people say about this product
Pros:
- High speeds: Supports up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band for fast and reliable internet connectivity.
- 5 Gigabit ports: Wired connections can be established with speeds of up to 1,000 Mbps for high-speed data transfer and gaming.
- 4 external antennas: Improve signal coverage and reduce dead zones throughout the home or office.
- Dual-band technology: Operates on both 2.4 GHz and 5 GHz frequencies to provide optimal performance for different types of devices and applications.
- MU-MIMO technology: Allows multiple devices to connect to the router simultaneously without experiencing significant speed loss.
- Access point mode: Can be used to extend the range of an existing wireless network or create a new hotspot.
- Easy setup: User-friendly web interface and mobile app make it easy to install and configure the router.
- Affordable price: Offers a good balance of performance and affordability compared to other AC1200 routers.
Cons:
- Limited range: May not provide adequate coverage for large homes or businesses with multiple floors.
- Limited customization options: Some advanced features and settings may be missing compared to higher-end routers.
- Outdated Wi-Fi standard: Uses the 802.11ac Wi-Fi standard, which is older than the newer 802.11ax (Wi-Fi 6) standard.
- Potential overheating: Some users have reported overheating issues when running the router under heavy loads.
- Lack of USB ports: Does not have any built-in USB ports for connecting external storage devices or printers.
