Youtube Reviews
Key Pointers:
- Brand and Model: Synology Router, RT6600AX
- Parental Control: Enhanced parental control features compared to previous mesh router
- Box Contents:
- Network router
- Power adapter
- Network cable
- Quick install documentation (detailed manual available online)
- LED Indicators:
- Land connectivity (yellow)
- Wi-Fi and status (blue)
- Ports:
- 4 Gigabit LAN (RJ-45) ports
- 1 Gigabit WAN (WAN/LAN) port
- 1 USB 3.0 port
- Buttons:
- Power/Reset button
- WPS button
- Wi-Fi button
- Antennas:
- Non-removable, fixed antennas
Key Points:
- Synology RT6600ax is a tri-band Wi-Fi 6 router with a 1.8 GHz quad-core processor and 1 GB of DDR3 RAM.
- It has 6 fixed antennas, three for 5 GHz and three for 2.4 GHz networks.
- Supports one 1 Gbps port, one 2.5 Gbps port, and four 1 Gbps LAN ports.
- Comes with a USB 3.0 port for connecting external devices.
- Features Synology's Router Management Software (SRM), which provides advanced network management capabilities.
- SRM offers features such as network monitoring, traffic control, Wi-Fi performance analysis, and mesh network support.
- Includes comprehensive parental control options, including time limits, web filtering, and device monitoring.
- Provides fast file transfer speeds, with a maximum of 60 MB/s during testing.
- Achieved over 600 Mbps download speed in a speed test.
- Priced at $300 in certain markets.
Key Points
Hardware Overview:
- Quad-core 1.8GHz processor
- 1GB DDR3 memory
- 4x4 MIMO antennas in 5GHz band
- 2x2 MIMO omnidirectional antennas in 2.4GHz band
- 1 configurable 2.5Gb/s WAN/LAN port
- 3 × 1Gb/s LAN ports
- USB 3.2 port for external storage or tethering
Network Management:
- Synology Router Manager 1.3 (SRM)
- Support for up to 5 networks and 15 SSIDs
- Network segmentation and VLAN support
- Parent controls
Wi-Fi Features:
- Tri-band Wi-Fi 6 (2.4GHz, 5GHz x2)
- Smart Connect (combines all bands into a single SSID)
- Guest network support
- MAC filtering
- Advanced Wi-Fi settings (channel configuration, etc.)
Security Features:
- Firewall with customizable rules
- Dos protection
- Auto block feature for suspicious login attempts
- Safe Access and Threat Prevention (available as separate package)
Other Features:
- VPN Plus Server (available as separate package)
- Threat Prevention (available as separate package)
- Download Station
- Internal DNS server
- Media server
- Radius server
Speed Test Results:
- 695Mbps down, 237Mbps up (under non-optimal conditions)
Key Pointers:
-
Synology RT 6600x: Best for NAS, with solid performance and familiar hardware design.
-
Asus Zen Wi-Fi AXE8 2-pack: Best for large homes, delivering stable and high-speed Wi-Fi with extended coverage.
-
TP-Link Archer GX90AX 6600: Best budget gaming router, with a range of features and game acceleration for optimized gaming performance.
-
Netgear Nighthawk RAXE300: Best gaming router with Wi-Fi 6E, offering exceptional speed and support for the latest Wi-Fi standard.
-
Asus ROG Rapture GT-AX6000: Best gaming router, providing fast and reliable Wi-Fi with a focus on gaming features and customization.
-
TP-Link Archer AX21: Best budget router, delivering solid performance at a low price, suitable for basic home use.
-
TP-Link Archer AX55: Best overall router, offering a balance of performance, features, and affordability, making it a great choice for most homes.
Specifications
| Specification | Value |
|---|---|
| Wi-Fi Standard | ax (Wi-Fi 6) |
| Number of Ethernet Ports | 4 (1x 2.5Gbps, 3x 1Gbps) |
| Number of USB Ports | 2 (1x USB-C 3.2 Gen 1, 1x USB 3.2 Gen 1) |
| Wireless Speed | Up to 6.8 Gbps (1201 Mbps on 2.4 GHz + 574 Mbps on 5 GHz + 574 Mbps on 5 GHz-2) |
| Wi-Fi Bands | Tri-band (2.4 GHz, 5 GHz, 5 GHz-2) |
| Wi-Fi Channels | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165) |
| Wi-Fi Security | WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise |
| Firewall | SPI firewall, DoS protection, Brute force protection |
| Parental Controls | URL filtering, Time scheduling, Device blocking |
| Threat Prevention | Intrusion detection and prevention, Malware blocking |
| VPN | SSTP, OpenVPN, L2TP over IPsec, PPTP |
| VLAN Segmentation | Yes |
| Multiple SSIDs | Yes |
| Dimensions | 9.8 x 9.8 x 2.8 inches |
| Weight | 2.6 pounds |
Key Features

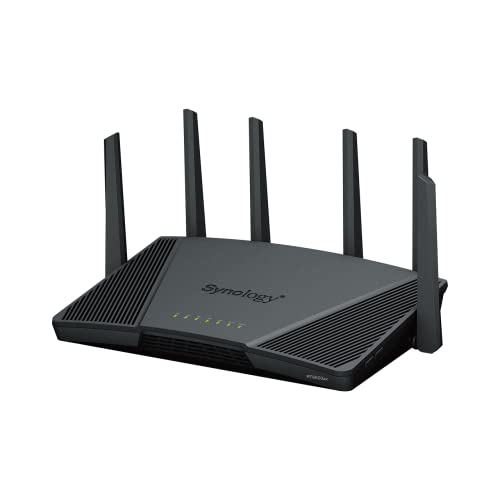

Synology RT6600ax Wi-Fi Router
Features:
Tri-Band 4x4 160MHz Wi-Fi: * Support for the latest Wi-Fi 6 (802.11ax) standard * Three separate bands (2.4GHz, 5GHz-1, 5GHz-2) for optimal performance * 160MHz channel width on the 5GHz bands for high-speed wireless connections
2.5Gbps Ethernet: * 1x 2.5Gbps WAN port for ultra-fast internet connectivity * 1x 2.5Gbps LAN port for connecting compatible devices with maximum speed
VLAN Segmentation: * Allows you to create multiple virtual LANs (VLANs) to isolate different networks, such as guest or IoT devices
Multiple SSIDs: * Create multiple wireless networks with different settings, such as guest access, device isolation, and parental controls
Parental Controls: * Web filtering to block inappropriate content * Time limits for internet access * Device management to restrict access to certain devices
Threat Prevention: * Intrusion detection and prevention system (IDS/IPS) to protect against cyber threats * Malicious domain blocking to prevent access to harmful websites
VPN: * Built-in VPN server for secure remote access * Supports OpenVPN, L2TP, and PPTP protocols
Other Features:
- OFDMA and MU-MIMO technology for improved wireless performance in crowded environments
- Beamforming for enhanced signal stability and coverage
- Easy setup and management via the Synology Router Manager mobile app
- Supports IPv6 and IPv4
- Auto-channel selection for optimal wireless performance
- QoS (Quality of Service) engine to prioritize network traffic
- Wireless mesh support for extending wireless coverage with compatible Synology devices
What do people say about this product
Pros:
- Tri-band and 4x4 architecture: Provides exceptional Wi-Fi coverage and speed.
- 160MHz channel support: Enhances Wi-Fi performance in less congested environments.
- 2.5Gbps Ethernet ports: Enables fast wired connectivity for devices like NAS and gaming consoles.
- VLAN segmentation: Allows for network segmentation to enhance security and improve performance.
- Multiple SSIDs: Allows for the creation of separate Wi-Fi networks for different purposes (e.g., guest, IoT devices).
- Parental controls: Provides robust parental features to manage internet access for children.
- Threat prevention: Built-in malware and intrusion detection system to protect the network from cyber threats.
- VPN support: Allows for secure remote access to the network.
Cons:
- Expensive: The RT6600ax is a premium router with a higher price tag than comparable models.
- May be overkill for some users: Its advanced features may not be necessary for all users who do not require extensive network management or multiple SSIDs.
- Limited LAN ports: The router only has three LAN ports, which may be insufficient for some users with multiple wired devices.
- Reported Wi-Fi range and stability issues: Some users have reported occasional Wi-Fi dropouts or connectivity issues.
- Proprietary operating system: Synology SRM is a closed-source operating system, which limits customization and third-party support compared to open-source alternatives.
